Register Layer as Template Material

This section describes how to register a template material to the Material palette.

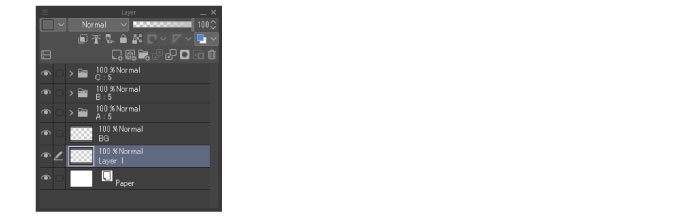

1Creating the Layer Configuration

Create the layer configuration to be registered as a template.

·All layers on the canvas are registered in the template material. Delete any layers that are not needed. ·When a canvas composed of [Frame border folders] only is registered, it is registered as a [Framing template]. In all other cases, the canvas is registered as [Layer template]. Either material, [Framing template] or [Layer template], may be used as template.

2 Select the command

Select the [Edit] menu > [Register Material] > [Template].

3Configure the material

The [Material property] dialog box will open. Configure the settings for the material on the dialog box.

For details on the [Material property] dialog box, see "Material property Dialog Box [PRO/EX]".

(1)  Configure the name, content, save destination and search tag for materials.

(2)  Click [OK].

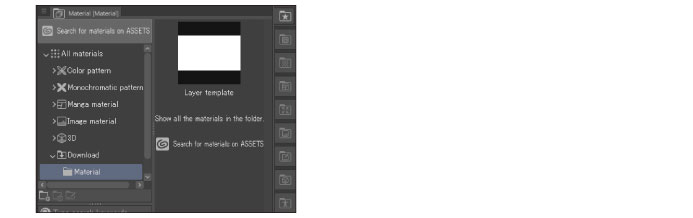

4Registration of the template material is completed

The dialog box closes and the template material is registered in the Material palette.
