Functions of the View Settings Palette

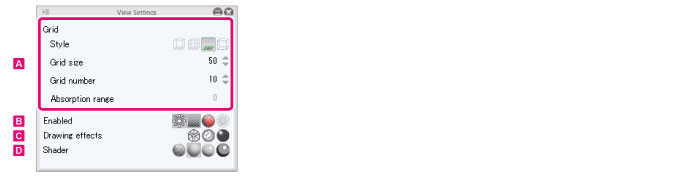

This section describes the functions and names of each part of the [View Settings] palette.
A.Grid
Set how to show grids.
(1) Style
Set how to show grids.
Cube and one plane |
Displays a grid on one plane. This cannot be set in the material setup screen. |
Cube and three planes |
Displays a grid on three planes. This cannot be set in the material setup screen. |
1plane |
Displays a grid on only one plane. The grid is not displayed. |
None |
No grid is displayed. |
|
In the quad screen view, the [Style] setting is applied only to the perspective view. |
(2) Grid size
Set the size of each square in the grid.
(3) Grid number
Set the number of squares in the grid. Input the number of squares to be created in each row of a plane.
(4) Absorption range
Use the [Move] tool to set the area to be absorbed by the grid when the mesh or an element is moved. The area of the mesh or elements indicated by [Absorption range] is absorbed by each square.
|
In the Edit 3D Shape screen, these are absorbed by the grid during movement when [Grid snap] is turned on in the [Tool Property] palette of the [Move] tool. |
B.Enabled
Set how to show meshes and 3D models.
Lighting |
Enables lighting. This cannot be set in the Edit 3D Shape screen. |
Show texture |
Enables textures. This cannot be set in the Edit 3D Shape screen. |
No back-face culling |
Displays/hides the back faces of a surface. |
Curved surface |
Displays/hides curved surfaces. |
C.Drawing effects
Set drawing effects for 3D models in the material setup screen. This cannot be set in the Edit 3D Shape screen.
Wireframe |
Displays 3D models only as wires. |
Show outline |
Displays the outlines of 3D models. |
Show shadow |
Displays the shadows of 3D models. |
D.Shader
Set the shading method for 3D models in the material setup screen. This cannot be set in the Edit 3D Shape screen.
Select from [Flat shading], [Gouraud shading], [Phong shading] and [Toon shading].
