When a light table layer is selected

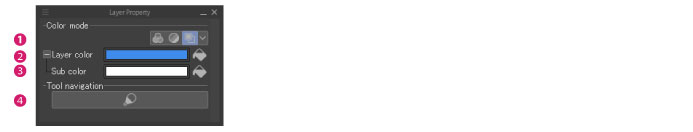

This section describes the features of the [Layer Property] palette when a [Light table] layer is selected on the [Animation cel] palette.

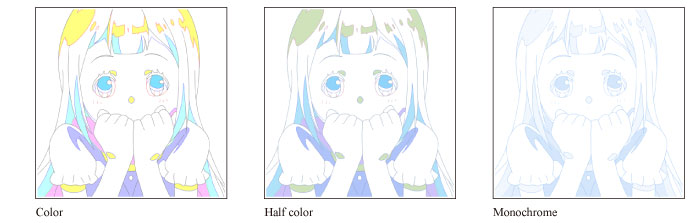

(1) Color mode
Set the display colors for the light table layers.
Color |
Colors of cels and layers are displayed as is. |
Half color |
The color set for [Layer color] is combined with the cel and layer colors while maintaining those colors. |
Monochrome |
The cel and layer colors are grayed. Black is changed to the color set for [Layer color] and white is changed to the color set for [Sub color]. |
(2) Layer color
It is possible to set the display color to be used in place of white when [Half color] or [Monochrome] is selected for [Color mode]. When [Monochrome] is selected, the [Main color] is used in place of black.
Clicking the color indicator displays the [Color settings] dialog box where you can set the color. Click [Fill] to set the selected drawing color. This item does not display when [Color] is selected for [Color mode].
|
For details on the [Color settings] dialog box, see "Advanced settings of color Dialog Box". |
(3) Sub color
it is possible to set the display color to be used in place of white when [Monochrome] is selected for [Color mode].
Clicking the color indicator displays the [Color settings] dialog box where you can set the color. Click [Fill] to set the selected drawing color. Configuring a color changes white to the configured color. This item does not display when [Color] or [Half color] is selected for [Color mode].
|
For details on the [Color settings] dialog box, see "Advanced settings of color Dialog Box". |
(4) Tool navigation
[Tool navigation] displays tools and sub tools that can be used for editing the selected layer.
Placing the mouse cursor over a tool icon on the [Tool navigation] displays the tool name. Clicking the tool icon switches the tool/sub tool.
