Capturing a Thumbnail
This section explains operations in the [Capture thumbnail] window that is displayed when capturing a thumbnail for a material. The captured thumbnail is displayed in the [Material] palette and the screen for setting materials in CLIP STUDIO PAINT.
|
|
For [Movability], [Layout], [Angle], etc., capture a thumbnail of the applied settings in the [Document] window to create a thumbnail that clearly shows the setting information. |

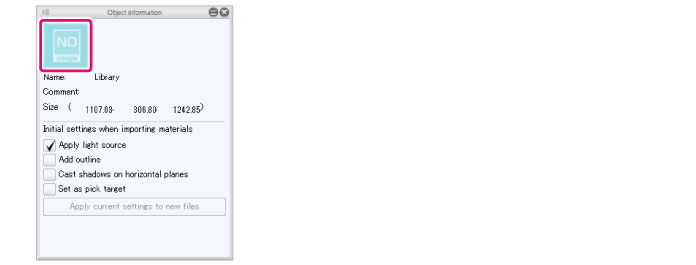

1Display the [Capture thumbnail] window
Click [Thumbnail] in the [Object information] palette.

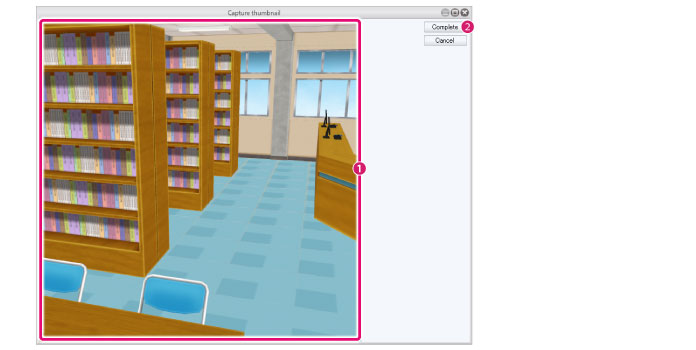

2Capturing a Thumbnail
Capture the thumbnail in the [Capture thumbnail] window.
(1) Drag in the [Preview area] to set the desired angle for the thumbnail. The area displayed will be used for the thumbnail.
(2) Click [Complete].
|
|
For information on how to set the angle, see "Setting Camera Angles" . |

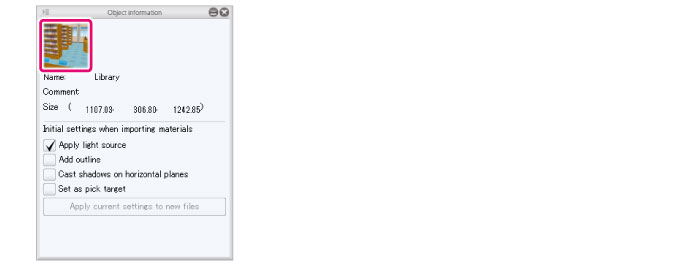

3The thumbnail is complete
The thumbnail in the [Object information] palette changes to the one captured in the [Capture thumbnail] window.
|
|
To change a thumbnail, click [Thumbnail] on the [Object information] palette to display the [Capture thumbnail] window. |
