Exporting Textures

[Surface materials] (textures) in [Material panel folders] can be exported as images in PNG format. Exported images can be edited in image editing software.

1Select a texture

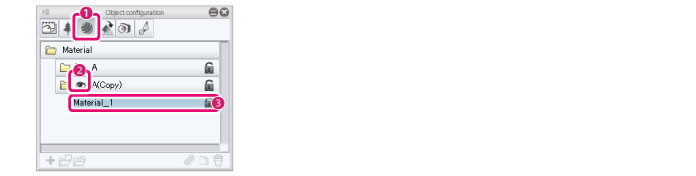

Select the [Surface material] to be exported from the [Object configuration] palette.

(1)   Click [Material] in the group on the [Object configuration] palette.

(2)   Display the [Material panel folder] containing the [Surface material] to be exported in the [List].

(3)   Select the [Surface material].

2Exporting Textures

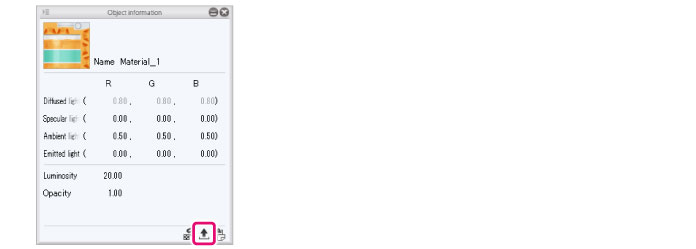

Click [Export texture] in the [Object information] palette.

When the [Save As] dialog box is displayed, specify a location and save the image.

The exported file can be imported into CLIP STUDIO MODELER after editing with image editing software. For information on importing, see "Changing Textures" .
