Material Palette Menu

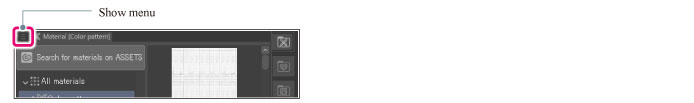

This section describes the functions listed in the palette menu that appears when you click the menu icon at the upper left corner of the Material palette.

Register image as material [PRO/EX]

Converts an image within a selected area or selected layer into a material. Converted materials are registered to the Material palette.

Material Folder > New Folder

Creates a new folder in [Tree view].

Material Folder > Delete

Deletes the selected folder in [Tree view].

·Default folders cannot be deleted. ·Deleting a folder deletes the materials inside.

Material Folder > Change name

Renames the selected folder in [Tree view].

Default folders cannot be renamed.

Select with checkbox

Shows a checkbox for each thumbnail of the materials shown in [Material list]. You can select a material by turning on the checkbox.

Paste material to canvas

Pastes the material selected on the [Material list] to the canvas.

Swap material

Replaces the material pasted on the canvas with that selected in the [Material list].

For details on how to swap materials, see "Swapping a Pasted Material".

Material property [PRO/EX]

Shows the [Material property] dialog box of the selected material in [Material list].

On the dialog box, you can configure settings such as name, content, paste operation, save destination, tag for search and the like for the mate­rial.

Add to Favorites

A selected material on the [Material list] registers it to the [Favorites] Folder on the [Material list]. An Favorites icon will be also be added to the Material name.

You can now use Materials registered in the [Favorites] Folder from other folders as well.

If a registered material inside the [Favorites] Folder is already selected, it will be unregistered.

Delete Material

Deletes the material selected on the [Material list].

View

Select the thumbnails shown in [Material list] from [Detail], [Large thumbnail], and [Small thumbnail].

Sorting

You can sort materials in the material list by the following attributes: Title, Date Added, and Material Folder. You can sort by ascending or descending.

View Material Details

Displays/hides the [Detail Information of Material].

Show command bar

Shows/hides the Command Bar.

Show command bar for material folders

You can now Show or Hide the command bar for material folders.

Show materials that cannot be used

Choose whether to display or hide materials that cannot be used in your version of Clip Studio Paint. When this is off, materials that cannot be used will be hidden from the list of materials.

When you hover the cursor over a material that cannot be used in Clip Studio Paint, a “no” icon (circle-backslash symbol) will appear. Click the icon to show the reason why the material cannot be used in Clip Studio Paint.

Hide material [...] palette

Hides the open Material palette.

To display again the Material palette you have hidden, select the palette from [Window] menu > [Material].
