Show Tone Area [PRO/EX]

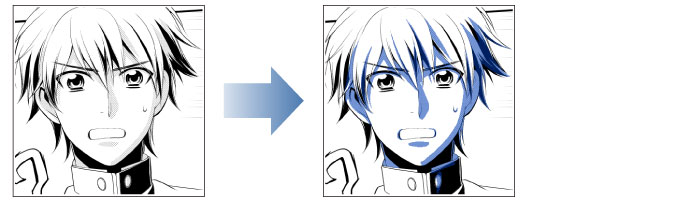

Select the options in the [View] menu > [Show Tone Area] to highlight areas with screentones in color.




When Tone is turned on as an effect, you can change the color to highlight the tones in the [Layer Property] pal­ette > [Area Color]. For details, see "Tone".

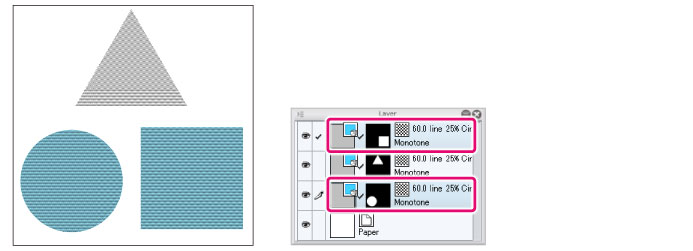

Show Selected Tone Area

When turned on, selecting a layer with tones on the [Layer] palette will show the areas with tone in color.




·When [Tone] is turned on in the [Layer Property] palette of a layer folder, selecting a toned layer in the folder will not show the tone areas of that layer in color.

·When [Edge] is turned on on the [Layer Property] palette for [Layer Folder], selecting a toned layer in a folder shows the toned areas of that layer with colors, but clipped to the layer below.



Show All Tone Areas

Turn this on to highlight all tone areas in color.

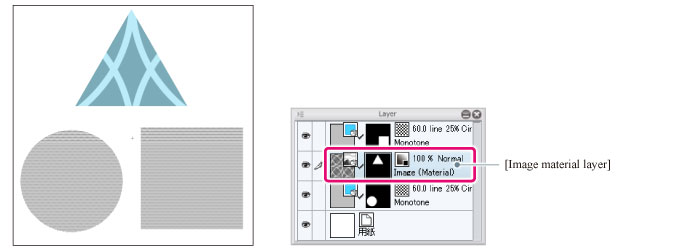

Include Image Material Area

Turn this on to highlight areas with pasted image materials in color.




When [Overlay texture] is turned on in the [Layer Property] palette, image material areas will not shown in color even if [Include Image Material Area] is turned on.
