Show vector paths [PRO/EX]
Select the options in the [View] menu > [Show vector paths] to display the vector paths on lines drawn on vector layers. You can also adjust how control points are shown.
You can also display center paths for frame border folders and balloon layers.
|
|
·If the lines are almost black or blue, the vector paths will appear in orange. If the lines are almost white or red, the vector paths will appear in blue. ·You can adjust the vector path opacity in the [Preferences] dialog box. For details, see "Layer/Frame". |

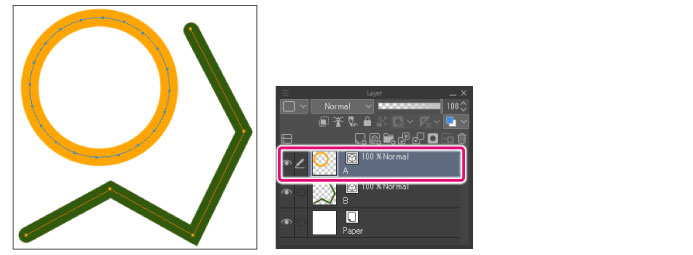

Show vector paths on selected layers
This shows vector paths only on the vector layer currently selected in the [Layer] palette. Vector paths will also display for selected frame border folders and balloon layers.

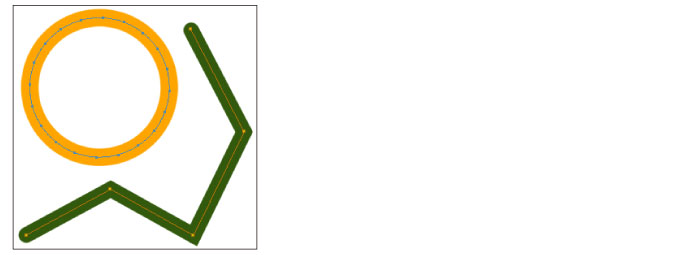

Show all vector paths on vector layers
This shows the vector paths of the vector layers on all vector layers.
|
|
Turning on [Show all vector paths on vector layers] will not display center paths for frame border folders or balloon layers. Vector paths will display when you select the frame border folder or balloon layer. |

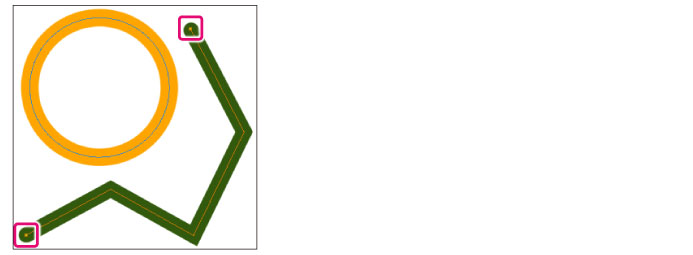

Show control points at beginning and end
Turn this on to display the control points of the vector path at the beginning and end.
|
|
·To display control points, either [Show vector paths on selected layers] or [Show all vector paths on vector layers] must be turned on to be enabled for control points to display. ·Will also show multiple control points. Except the Special ruler, Perspective ruler and Symmetrical ruler. |
Show all control points
Turning this on displays all of the control points along vector paths.
|
|
·To display control points, either [Show vector paths on selected layers] or [Show all vector paths on vector layers] must be turned on to be enabled for control points to display. ·Will also show multiple control points. Except the Special ruler, Perspective ruler and Symmetrical ruler. |
