Tool property Palette

The [Tool Property] palette displays when [Window] menu → [Tool Property] is selected.

The [Tool Property] palette adjusts the settings of the selected sub tool.




The display of items whose values are configured with a slider can be changed to an indicator. For details on how to change, see "Right-click menu [Windows/macOS]" .

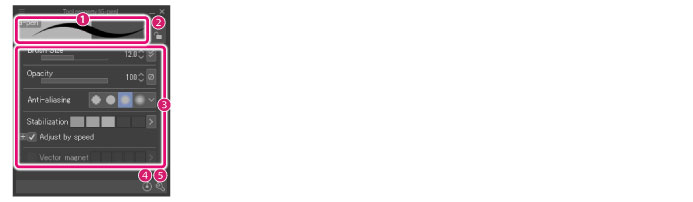

(1)   Stroke preview

Previews the stroke of the selected sub tool.

(2)   Lock [PRO/EX]

Saves the values configured on the [Tool Property] palette to the currently selected sub tool. When locked, the settings on the [Tool Prop­erty] palette can be changed but when the same sub tool is selected again, the settings are restored to those at the time of [Lock].




Locked sub tools are displayed on the [Sub tool] palette with a [Lock] icon.

(3)   Tool property

Allows you to adjust the settings of the sub tool selected on the [Sub tool] palette.




Items available on the [Tool Property] vary depending on the selected sub tool. For tool-specific items, see "Tool List" .

(4)   Initial settings

Resets the settings on the [Tool Property] palette and restores the selected sub tool settings to their initial values.

(5)   Sub tool detail [PRO/EX]

When turned on, displays the [Sub Tool Detail] palette. When turned off, closes the [Sub Tool Detail] palette.




The [Sub Tool Detail] palette allows you to edit the selected sub tool setting in more detail than the [Tool Property] palette. For details, see "CLIP STUDIO PAINT Tool Setting Guide".



Tool property Palette Menu

The following describes the functions included in the menu that displays when you click [Palette menu] on the upper left corner of the [Tool Property] palette.

Lock [PRO/EX]

Saves the values configured on the [Tool Property] palette to the currently selected sub tool. When locked, the settings on the [Tool Property] palette can be changed but when the same sub tool is selected again, the settings are restored to those at the time of [Lock].

Revert to initial settings

Resets the settings on the [Tool Property] palette and restores the selected sub tool settings to their initial values.

Register to initial settings

Registers the settings on the [Tool Property] palette as the initial settings of the selected sub tool.

Modifier key settings [PRO/EX]

Opens the [Modifier Key Settings] dialog box where you can configure modifier keys for the selected sub tool.




For details on the [Modifier Key Settings] dialog box, see "Modifier key settings [Windows] [PRO/EX]" .

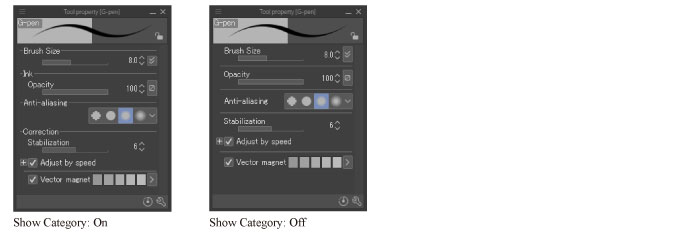

Show Category

When turned on, displays category separators of the [Sub Tool Detail] palette on the [Tool Property] palette.

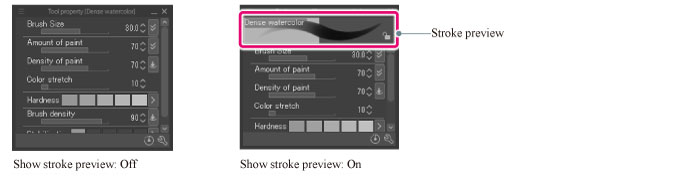

Show stroke preview

When turned on, displays [Stroke preview].

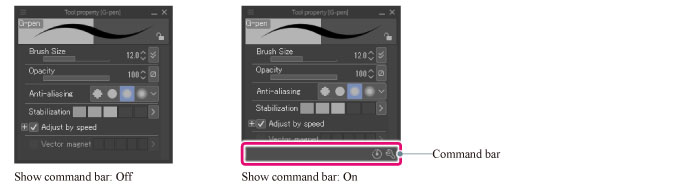

Show command bar

When turned on, displays the command bar of the [Tool Property] palette.

Hide tool property palette

Hides the [Tool Property] palette.




To display the [Tool Property] palette again, select [Window] menu → [Tool Property].



Right-click menu [Windows/macOS]

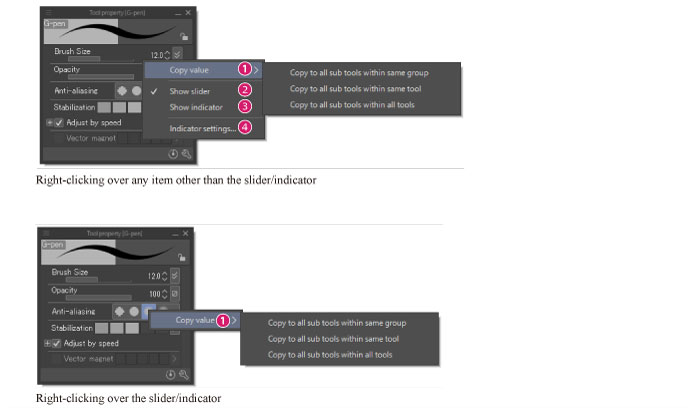

The following describes how to configure the palettes using the menu that displays when an item on the palette is right-clicked.




When using an iPad, the right-click menu can not be displayed. You can perform the same operation from the menu displayed by clicking [Show Sub Tool Detail Menu] on the [Sub Tool Detail] palette. For details, see "Sub tool detail palette [PRO/EX]" .

(1)   Copy value

Copies the setting values of the item to other sub tools. You can select one of the following copy destinations:

·Copy to all sub tools within same group

·Copy to all sub tools within same tool

·Copy to all sub tools within all tools

(2)   Show slider

Switches the indicator display to slider display.




[Show slider] displays when you right-click over a slider/indicator.

(3)   Show Indicator

Switches the slider display to indicator display.




·[Show indicator] displays when you right-click over a slider/indicator.

·The configured value is not displayed for indicator display. To view the currently configured value, click the triangular icon on the right side of the indicator.

(4)   Indicator settings

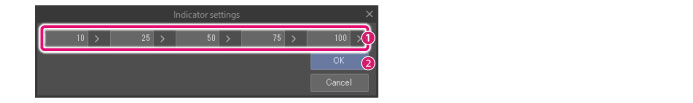

Selecting the menu item displays the [Indicator settings] dialog box. On the dialog box, you can register a value to each indicator bar.




[Indicator settings] displays when you right-click over a slider/indicator.

(1)   Input a value in the input field of each indicator bar. Clicking the triangular icon on the right side of the input field allows you to con­figure the value with a slider.

(2)   Clicking [OK] registers the input values.




When configuring values with the [Indicator settings] dialog box, be sure the values are decreasing to the left and increasing to the right.
