When a material panel folder is selected

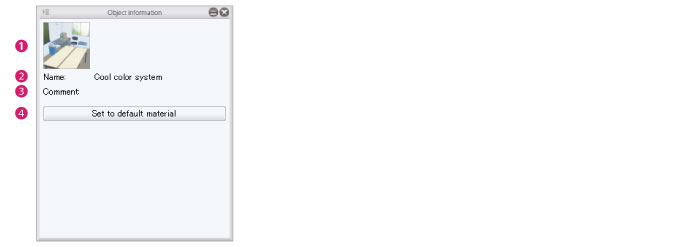

The following settings can be configured in the [Object information] palette after selecting a [Material panel folder] in the [List] when [Material] is selected in the [Group] of the [Object configuration] palette.
|
|
A [Material panel folder] cannot be edited in the [Object information] palette when it is hidden. |
(1) Thumbnail
The thumbnail of the [Material panel folder].
Click the thumbnail to display the [Capture thumbnail] window where a thumbnail can be captured for the [Material]. For information on how to configure this, see "Capturing a Thumbnail" .
(2) Name
Displays the name of the material being edited. Click this field to input the material name. The input name is applied to the [Object configuration] palette.
This material name is displayed in the screen for configuring 3D object material settings in CLIP STUDIO PAINT.
(3) Comment
A comment about the [Material panel folder] can be set. Click this field to input a comment. Information such as a description of the [Material panel folder] can be entered here.
(4) Set to default material
In case of 3D objects with more than one [Material panel folder], [Material panel folders] selected in the [Object configuration] palette can be set as default [Materials].
When loading 3D object materials into CLIP STUDIO PAINT, the set [Material] is applied.
